Laparoscopic Resection of Renal Capsular Endometriosis in a Woman with Menstrual-Related Flank Pain: Case Report

Abstract

Background

Although involvement of the urinary system is not uncommon, endometriosis in the kidneys is rare. To date, laparoscopic partial nephrectomy has been the preferred approach for managing renal endometriosis. Here, we report for the first time the results of laparoscopic removal of a renal capsular endometriosis in a malrotated kidney in an attempt to save the whole kidney parenchyma, in terms of feasibility and safety.

Case presentation

A 37-year-old female presented with periodic right flank pain associated with her menstrual cycle. On imaging, a malrotated right kidney and a hypodense irregular-shaped lesion measuring 30 * 20 * 15 mm were seen in the superior portion of the right perinephric space. Histologic evaluation of the ultrasound-guided biopsy was consistent with renal capsular endometriosis. The patient underwent laparoscopic surgery to remove the capsular mass while preserving the normal renal parenchyma. Pathological examination of the biopsy obtained during surgery was in favor of renal endometriosis. At 6-month follow-up, the patient’s pain had completely disappeared and no complications had occurred. In addition, imaging did not show any remarkable recurrence.

Conclusion

Renal endometriosis should be strongly considered as a differential diagnosis in female patients with a renal capsular mass and exacerbation of flank pain during menstruation. Based on our experience, with preoperative needle biopsy and clearing the pathology, laparoscopic removal of the mass in spite of renal anatomic abnormality is feasible and safe and thus could be considered as a possible treatment option.

Background

Endometriosis is characterized by the abnormal ectopic growth of endometrial tissue outside the uterus, most commonly in the pelvic cavity [1]. Extrapelvic sites such as the gastrointestinal tract and the urinary system might also be affected less frequently [2,3,4]. Signs and symptoms vary greatly depending on the site of involvement, but the association of symptoms with menstrual cycles raises the clinical suspicion of endometriosis. Although imaging aids in the initial diagnosis, the final diagnosis must be confirmed through histologic examination [5]. Since medical treatment is associated with recurrence of symptoms, surgery is the standard of choice for managing renal endometriosis, unless in special cases [6, 7].

Herein, we report a 37-year-old woman with right flank pain and a malrotated right kidney who was found to be a case of renal endometriosis following further evaluation. Although laparoscopic partial nephrectomy is the preferred treatment in this patient, we performed laparoscopic removal of the renal capsular endometriosis to preserve kidney function. This study aims to discuss the feasibility and complications of this treatment modality.

Case presentation

In June 2019, a 37-year-old female was referred to our center with menstrual-related periodic right flank pain. She did not report any significant past medical or surgical history and was normal on physical examination. She had given birth to two children via normal delivery many years ago. Routine laboratory tests were normal. Ultrasonic assessment (US) showed mild hydronephrosis of the right kidney. Further evaluation with computed tomography (CT) revealed a malrotated right kidney with mild hydronephrosis, but no obstruction was seen on contrast-enhanced imaging. Moreover, a hypodense irregular-shaped lesion, probably originating from the renal capsule, was noted in the superior portion of the right perinephric space causing mild pressure effect on the right kidney. The size of the lesion measured approximately 30 * 20 * 15 mm (Figs. 1a, b and 2). In the next step, US-guided percutaneous renal mass biopsy was performed and histologic examination revealed loosing benign endometrial growth and fibroconnective stroma in favor of endometriosis. Following confirmation of the diagnosis, we decided to enucleate the renal capsular mass, laparoscopically.

Fig. 1
figure1

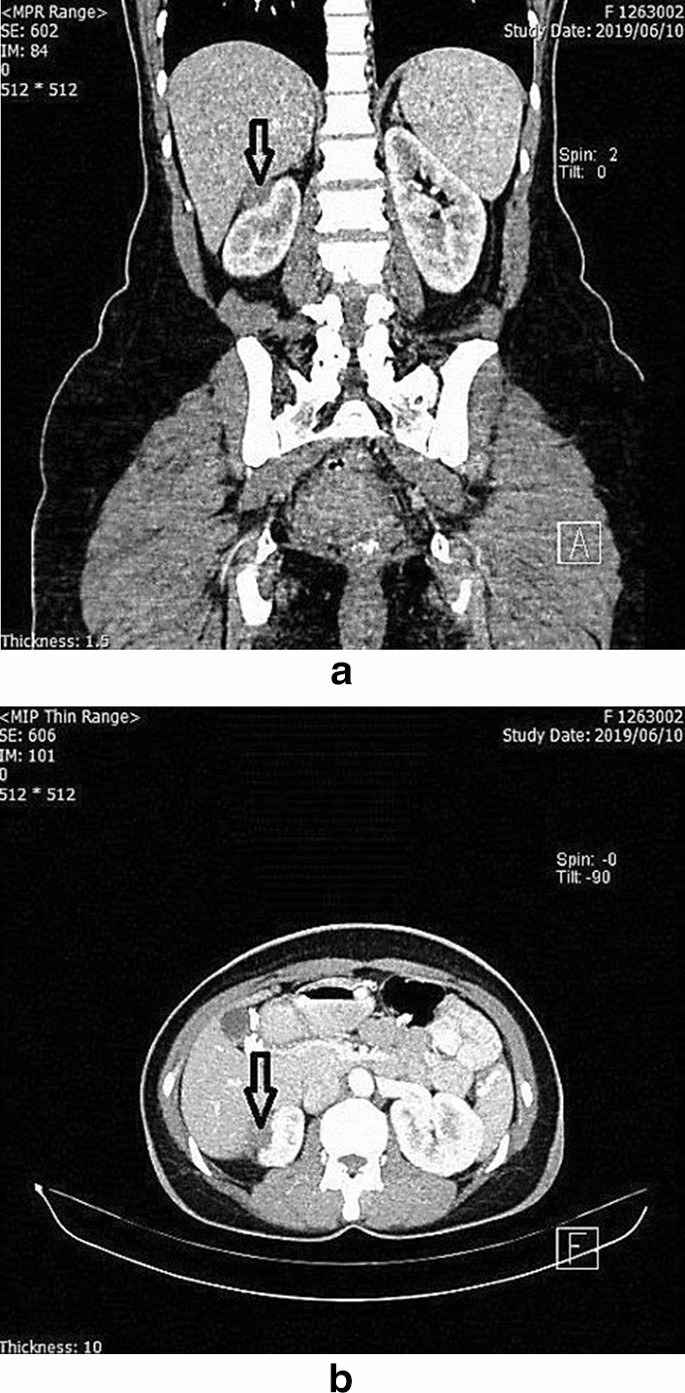

a Abdominopelvic CT showing a heterogeneous mass (black arrow) with pressure effect on the upper pole of the right kidney (coronal view). b. Abdominopelvic CT showing a heterogeneous mass (black arrow) with pressure effect on the upper pole of the right kidney (axial view)

Fig. 2
figure2

Abdominopelvic CT showing malrotated right kidney (black star) and anteriorly oriented right renal pelvis

After placing the patient in right flank position and inserting four trocars, the malrotated right kidney was exposed transperitoneally (Fig. 3). Subsequent to finding the exact site of the mass, laparoscopic enucleation and complete removal of the renal capsular mass were performed with the preservation of normal renal parenchyma. No significant bleeding occurred during this process, and the obtained specimen was eventually sent for pathologic evaluation (Fig. 4).

Fig. 3
figure3

Malrotated right kidney (black star). The arrow shows the anteriorly oriented renal pelvis and ureter

Fig. 4
figure4

Laparoscopic resection of the capsular mass with a safe margin. The black star shows normal renal parenchyma, and the arrow shows the mass being resected

On pathological examination, a 60 * 25 * 10 mm mass (Fig. 5) containing fibroadipose tissue along with clusters of endometrial glands and stroma (endometrial nests) and hemorrhage was seen which was compatible with the diagnosis of renal capsular endometriosis (Figs. 6, 7).

Fig. 5
figure5

Macroscopic (gross) view of the capsular mass

Fig. 6
figure6

Microscopic view of the specimen (Regions 1 and 2 show the endometrial nests and fibroadipose tissue of the renal capsule, respectively)

Fig. 7
figure7

Microscopic view of the specimen (Regions 1, 2, 3, 4, and 5 show fibroadipose tissue, stroma, hemorrhage, endometrial nest, and the renal capsule, respectively)

At 6-month follow-up, the patient did not complain of any complications and her pain had completely disappeared. Also, imaging study at 4 months after surgery showed no remarkable recurrence of the mass (Fig. 8).

Fig. 8
figure8

Abdominopelvic CT at 4 months postoperative visit, showing no recurrence at the site of previous right renal capsular mass

Discussion

Endometriosis or extra-uterine endometrial growth might occur in the urinary system, mainly affecting the bladder and ureters and rarely the kidneys. The median age of diagnosing extrapelvic endometriosis is 34–40 years [8]. The first published report of renal endometriosis dates back to the 1950s in which metaplasia was thought to be the possible etiology [9,10,11].

Renal endometriosis might be associated with pain and hematuria [13, 14, 17,18,19], or it could be symptomless [15, 16]. On imaging, it presents either as a mass [14,15,16,17], complicated cyst [15,16,17,18] or a subcapsular hematoma [19]. The case described here presented with a capsular mass without any abnormality in the renal parenchyma except for fat stranding around the mass in the perinephric space.

Regarding the surgical management of such patients, different approaches such as open, laparoscopic, and robotic-assisted partial nephrectomy have been utilized so far [5, 12, 14, 19]. This is the first report of laparoscopic removal of a renal capsular endometriosis mass in an attempt to save the whole kidney.

Dirim et al. in Fertility and Sterility in 2009 reported a 15 cm left kidney subcapsular hematoma, which, after partial drainage by percutaneous catheter, was explored by open flank incision. The final pathology was renal capsular endometriosis [5].

Elham Arabzadeh et al. in American Journal of Clinical Pathology in 2018 reported laparoscopic partial nephrectomy of 3 cm enhancing left renal mass with preoperative suspicion of RCC. The final pathology was renal endometriosis. The authors concluded that in the appropriate clinical setting and suspicion of renal endometriosis, needle biopsy may prevent overtreatment and lead to preservation of renal normal parenchyma [12].

Badri et al. in Journal of Endourology Case Report in 2018 reported robotic partial nephrectomy of 3 cm enhancing left renal mass, which postoperatively proved to be endometriosis [14].

Giambelluca et al. in Chir in 2017 reported two cases of incidentally found asymptomatic renal endometriosis, proved by needle biopsy. As in both patients, renal lesions were asymptomatic and unchanged on subsequent imaging examination, and no therapy was needed [15].

To the best of our knowledge, this is the first case report of renal endometriosis with menstrual-related pain, diagnosed preoperatively, with attempt to remove just the endometrial mass and save the whole kidney. Previous articles had considered open or laparoscopic partial nephrectomy, mainly because there was preoperative probability of malignancy. Performing fine needle aspiration or biopsy before definite intervention helps the physician to decide about the best choice of treatment by ruling out other differential diagnoses [20]. We performed US-guided biopsy for our patient before surgery which was consistent with renal capsular endometriosis. This provided us with a better outlook on the patient’s nature of disease and allowed us to select a minimally invasive modality, confidently.

Nevertheless, this individual experience is not expandable to different types of renal capsular endometriosis or various renal anatomic abnormalities. Thus, a larger number of cases are required for better concluding results.

Conclusion

In this paper, we have reported for the first time the laparoscopic removal of a histologically documented isolated renal capsular endometriosis in a malrotated kidney. We considered saving the whole kidney, which was not associated with any early or late complications. Based on our experience in this patient, we recommend minimally invasive treatment modalities as a suitable option for renal endometriosis in the presence of renal anatomic abnormality. However, further experience of managing similar patients with this approach is warranted to reach a conclusion regarding its safety and feasibility.

Availability of data and materials

Patient’s medical files and operation video are available in Labbafinejad medical center.

Abbreviations

RCC:

Renal cell carcinoma

CT:

Computerized tomography
