Characteristics and management of testicular torsion in patients admitted to the Urology Department at Chris Hani Baragwanath Academic Hospital

Abstract

Background

The study was carried out to determine the trend of referrals with testicular torsion; the pre-surgery duration of symptoms; the rate of orchidectomy; as well as the seasonality and the age-related laterality of testicular torsion.

Methods

This was a retrospective study conducted at Chris Hani Baragwanath Academic Hospital using patients’ records from 2006 to 2018 from which data were obtained and analyzed.

Results

A total of 308 patients with testicular torsion were included in this study; the mean age was 17.2 ± 4.12 (10–33) years. The median (IQR) time from onset to hospital was 47 h, and 194/308 (63%) underwent orchidectomy. Although the orchidectomy rate was higher (95%) in those who had surgery beyond 72 h, 3.6% had reperfusion after detorsion in theater followed by orchidopexy. In the 112 patients who underwent a bilateral orchidopexy, the time from onset of symptoms to surgery was significantly shorter at a median (IQR) of 13 (9–26) h, compared to 144 (40–264) h in the 194 patients who had an orchidectomy (p < 0.0001). The odds of presenting with a right -sided testicular torsion increases by 6% (p = 0.047) for every 1-year increase in age.

Conclusion

This study shows that there is a significant association between the pre-surgery duration of symptoms and the testicular salvage rate. Testicular salvage is possible beyond 72 h from the onset of symptoms, although the salvage rate reduces from 75% within 24 h to 3.6% beyond 72 h. In addition, it also shows that older patients tend to present with right-sided torsion.

1 Background

Testicular torsion refers to the twisting of the spermatic cord structures with the subsequent loss of perfusion to the homolateral testicle. It is a urological emergency; early diagnosis and surgery are vital to saving the testicle and preserving future fertility [1,2,3].

Recent studies demonstrated that duration of symptoms prior to presentation to hospital was the most significant factor in predicting outcomes in patients with acute testicular torsion. Delayed presentation puts patients at risk of orchidectomy [4].

In addition, previous investigations on the seasonality of testicular torsion have shown conflicting results where some studies found a positive association between cold weather and testicular torsion and others found no association [5].

Incitingly, the following observations over a two-week period in the winter of 2013 constituted the motivation to conduct this study: an increased number of referrals of patients with testicular torsion to the Department of Urology at Chris Hani Baragwanath Academic Hospital (CHBAH); a high rate of testicular loss (orchidectomy); patients younger than 16 years of age all had a left-sided torsion; and the understanding that during this time period, lack of awareness, misdiagnosis and delayed referral of patients with acute scrotum from referring centers caused delayed presentations to CHBAH.

The purpose of this retrospective study was primarily to determine the yearly trend in number of referrals, to assess the time frame from onset of symptoms to the arrival at hospital and from arrival at hospital to surgery and, finally, to determine the rate of manual detorsion, testicular salvage and/or orchidectomy. Secondary objectives were to determine whether seasonality of testicular torsion existed, report on age at presentation and side of the torsion.

2 Methods

This study was conducted at the Department of Urology at Chris Hani Baragwanath Academic Hospital (CHBAH). The CHBAH is the largest tertiary hospital in South Africa, situated in Soweto, and one of the largest hospitals in the world. The study was designed as a retrospective cohort study using patients’ medical records from 2006 to 2018.

Ethical approval was obtained from the University of the Witwatersrand Human Research Ethics Committee (HREC) ahead of the outset of the study (Clearance Number M190761). Permission had also been obtained directly from the Head of Department of Urology at CHBAH as well as from the Chief Executive Officer (CEO) to make use of stored medical records. The study procedures were in accordance with the Declaration of Helsinki of 1964 and its recent revision in 2013.

The study enrolled all patients from 10 years old and above with accessible records admitted to the CHBAH Department of Urology who underwent scrotal exploration, orchidopexy or orchidectomy from 2006 to 2018 for testicular torsion. Patients under 10 years old are managed by pediatric surgeons as per hospital policy and interdepartmental agreement.

Data were collected retrospectively from patients’ records and were de-identified to preserve confidentiality of research participants. Theater register books were used as the starting point to search and identify cases. Scrotal exploration, orchidectomy and orchidopexy were keywords.

Files were requested and only those of testicular torsion patients were selected and considered for the study. In total, 351 patients’ records were retrieved. Only 308 records of patients with testicular torsion were enrolled in the study as the remaining 43 had surgery for either undescended testis or penetrating scrotal injury; hence, they were not included.

The collected data included age at admission, month of admission, year of admission, cause of torsion, side of pathology, preadmission duration of symptoms, manual detorsion, duration from admission to surgery and the type of surgery (orchidopexy or orchidectomy). Preadmission duration of symptoms and time of admission were found on the first page of the admission blue file, control chart and nursing progress report. The duration from admission to surgery was the difference between the time of admission and the time of surgery which was found on the anesthetic chart or theater notes.

These data were stored in an Excel spreadsheet with each entry given a unique identifier to which only the researchers had access to. The data were imported into Stata Statistical Software version 14 for analysis. Time frame data were not normally distributed due to time extremes, and hence, we report medians and interquartile ranges (IQRs).

The descriptive statistics including categorical variables are summarized in frequencies and percentages, while the continuous variables are analyzed and presented using either the median and IQR, or the mean (± SD). The chi-squared test was used to examine the seasonality and laterality of the condition. A value of p < 0.05 was regarded as being statistically significant.

3 Results

The total number of patients with testicular torsion included in this study was 308. The mean age was 17.2 ± 4.12 years and ranged from 10 to 33 years. Two patients in the study presented with atrophied testis following testicular pains months before (reason for consult) and had orchidopexy of the contralateral side. Another patient had non-simultaneous bilateral torsion (one year apart) and only consulted 7 days after the onset of the other side. The yearly number of referrals is shown in Table 1, and the trend is displayed in Fig. 1, with the lowest number of 1 referral in 2007 and the highest referral of 41 patients in 2013. On average, 24 patients were referred per annum during the 13-year study period. During this period, 42.5% were younger than 16 years of age, while 57.5% were older than 16 years. The majority of patients presented in the winter (Table 1).

Table 1 Characteristics of patients that presented with testicular torsion at the CHBAH urological unit from 2006 to 2018

Fig. 1

Trend of number of testicular torsion cases over the study period

In terms of the onset of symptoms, 96% of cases had a spontaneous onset, whereas the remaining 4% were trauma related.

During the study period, the time from the onset of symptoms to hospital admission was a median (IQR) of 36 (10–168) h; the time from hospital admission to surgery was a median (IQR) of 6 (3–48) h and from the onset of symptoms to surgery was 47 (15–216) h.

Impressively, when considering only patients taken to theater within 72 h of onset of symptoms, the median (IQR) times improve. The median (IQR) time from onset of symptoms to hospital decreased to 12 h (7–24); the median (IQR) time from admission to surgery also decreased to 3 h (2–5) as well as the median (IQR) time from onset of symptoms to surgery down to 16 h (10–28). Of the 308 study patients, 51.6% (n = 158) had left-sided torsion, 48% had right-sided torsion (n = 148), and one patient (0.3%) had bilateral torsion. From Table 2, the mean age (± SD) for those with left-sided testicular torsion was 16.74 (± 3.85) and for those with right-sided torsion was 17.67 (± 4.37). Left-sided torsion was more frequent in those younger than 16 years (57.3%), while right-sided torsion was more frequent in those aged 16 years and older (52.8%). Specifically, a trend was seen in patients aged ≥ 16 years that they were more likely to present with right-sided testicular torsion compared with those < 16 years of age (OR 1.50, 95% CI 0.95–2.37), albeit not statistically significant (p = 0.08). Moreover, we found that for every 1-year increase in age, the odds of presenting with a right-sided testicular torsion increases by 6% (OR 1.06, 95% CI 1.00–1.12, p = 0.047) (Table 2).

Table 2 Association of age with laterality of testicular torsion

Winter was the season with the highest number of referrals (30.2%) and summer with the lowest number of referrals (19.5%) (Fig. 2 and Table 1). Even though testicular torsion was seen more in winter in both age groups (26.7% in those < 16 years and 32.77% in those > 16 years), it was not statistically significant (p  = 0.480) (Table 3).

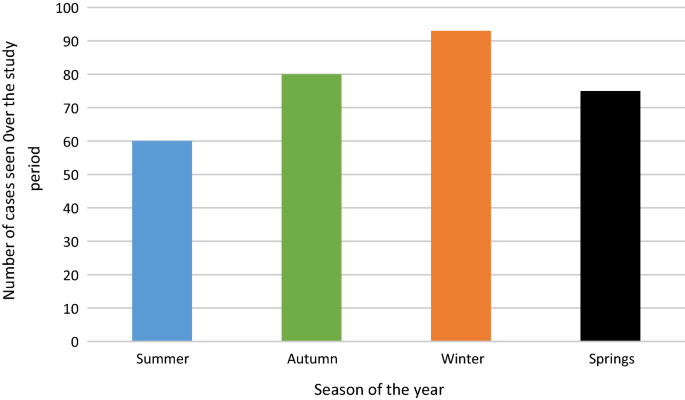

Fig. 2

Number of testicular torsion cases seen per season over the study period

Table 3 Season of the year and age groups

Of the 308 study patients, 112 (36.4%) patients underwent bilateral orchidopexy, 194 (63%) orchidectomy and 2 (0.65%) underwent a contralateral orchidopexy, the latter of which was because the affected testis atrophied. Over a third of patients presented within 24 h of onset (35.7%; n = 110/308), of which the majority of these patients (n = 82/110; 74.5%) underwent a salvage surgery, or orchidopexy, and the remaining 25.5% required orchidectomy. The orchidectomy rate increased to 95% in those who had surgery beyond 72 h (Table 4), while the orchidopexy rate decreased to 3.6%. Overall, in the 112 patients who underwent a bilateral orchidopexy, the time from onset of symptoms to surgery was significantly shorter at a median (IQR) of 13 (9–26) h, compared to 144 (40–264) h in the 194 patients who had an orchidectomy procedure (p < 0.0001). Specifically, the median time (IQR) from onset of symptoms to hospital admission, as well as from hospital admission to surgery, was both significantly shorter in the patients undergoing a bilateral orchidopexy compared to those having a orchidectomy at 9 (6–21) versus 96 (28–192) hours (p < 0.0001) and 3 (2–5) versus 24 (5–72) h (p < 0.0001), respectively.

Table 4 Surgery and duration of symptoms

Manual detorsion was performed in 32 patients (10.4%) with the earliest being done within 3 h of the onset of symptoms and the latest at approximately 48 h after the onset of symptoms. Among those that had manual detorsion within 48 h of presentation, 28 (87.5%) patients had a bilateral orchidopexy, while 4 (12.5%) patients had orchidectomy.

4 Discussion

Testicular torsion is the twisting of the spermatic cord with the subsequent loss of the blood supply to the ipsilateral testicle. It may result from the lack of normal fixation of the testis or the epididymis to the cord or scrotum. Anatomically, two distinct types of testicular torsion are well described in different age groups: (1) extra-vaginal: torsion occurs at the level of the external inguinal ring in neonates. (2) intra-vaginal: a more common variety due to bell clapper deformity seen in adolescents and young adults [1,2,3].

In fact, it is a surgical emergency requiring prompt and urgent management because of the risk of irreversible testicular ischemic injury. Ischemia can occur as soon as 6 h after torsion, and the chance of saving the testis is reduced over the next 48 h [6].

The degree of ischemia depends on the duration of torsion and the degree of rotation of the spermatic cord. Complete torsion occurs when the twisting is 360° or greater with the absence of intratesticular flow on color Doppler; intermittent torsion is characterized by intermittent testicular pain of short duration with spontaneous resolution. In partial or incomplete torsion, the degree of torsion is less than 360° with residual intratesticular perfusion and there is no spontaneous pain relieve [7].

Moreover, the condition is very painful and may wake the patient up from sleep [8]. The most common symptoms in testicular torsion are scrotal pain, swelling, erythema, nausea and vomiting. The lack of awareness and of the correct diagnostic knowledge for testicular torsion undoubtedly will lead to testicular death. Imaging or other diagnostic modality should not also be the cause of delay. However, in our institution in delayed presentation beyond 72-h imaging can be done and the absence of testicular flow and/or a positive whirlpool sign during color Doppler sonography (CDS), indicates the presence of testicular torsion [9].

As a matter of fact, different incidence rates of orchidopexy and orchidectomy have been reported in different articles from places around the world as follows: In America, 21,289 admissions with testicular torsion were identified using the Brazilian Public Health System Database from 1992 to 2010. The calculated annual incidence rate was 1.4:100,000 [10]. Asia, using the Taiwanese National Health Insurance Research Database from 1997 to 2010, subjects younger than 25 years with the diagnosis of testicular torsion were identified, 25.6% had orchiectomies and 74.4% orchiopexies. The estimated incidence was 3.5 per 100,000 person-years [11]. In Europe, a study done in England which was a prospective audit of 173 scrotal explorations for suspected testicular torsion from 1998 to 2008, 89 had testicular torsion and 16/89 (18%) required an orchidectomy due to delayed presentation [12]. In Australia, pathology results of all testicular and paratesticular specimens from August 1995 to September 2007 were analyzed. Clinical details were retrieved retrospectively from the computerized database. Testicular torsion represented 11.2% with 68% for the left side [13]; about 52% of our patients in the current study have left-sided testicular torsion. In Africa, 90 patients with torsion of the testis from 1987 to 1991 enrolled in a study in Zimbabwe and found that the mean age was 17 years (2 months to 32 years); 71% (64/90) presented within 72 h (mean delay 32 h); 29% presented late (> 72 h) with a mean delay of 7 days. The testicular salvage rate was 36% versus 64% orchidectomy rate [14]. Another African study in Nigeria by Udeh et al. showed instead an impressive orchidopexy rate of 75% [15].

In the present study, the mean age is 17.2 ± 4.12 years (range 10–33) and the accessible data used in this retrospective study show that the yearly trend of referrals is on the upward side. We believe that this may not be a true reflection of number of referrals as some files could not be retrieved due to poor record keeping, illegible handwriting particularly between 2006 and 2010; therefore, we could not further discuss such trend. However, one study by Bayne et al. reported an upward trend in number of referrals with testicular torsion from 3 in 2005 to 15 in 2015 before and after pediatric urology subspecialty certification [16].

The high orchidectomy rate of 63% observed in our study is a result of delayed presentation of the majority of patients for a definitive management with the median (IQR) time from onset of symptoms to hospital of 36 h (10–168). The delay is noted to be more in the preadmission level. However, the orchidectomy rate in this study is higher compared with the 25.6% reported in the Taiwanese study and 18% in the England audit.

Surprisingly, the rate is about the same compared to the Zimbabwean study. An audit by Rampaul et al. found that delayed presentation to hospital was the most important contributing factor to testicular losses in testicular torsion in contrast to hospital delays which were not significant enough to impact on the outcome [17].

Peeraully et al. in a single center retrospective analysis of intraoperative findings relative to source of referral to a tertiary hospital for emergency scrotal exploration found that the orchidectomy rate was lower (23%) in patients presented directly to their emergency department compared with those referred either from primary care centers (43%) or transferred from other hospitals (50%) [18].

As a tertiary hospital, patients seen in our department are either referred from primary care facilities or transferred from other non-tertiary hospitals. The incidence was not measured in this study owing to the fact that referrals to our facility came from different areas.

Another key point is that the degree of torsion and the duration of symptoms before scrotal exploration are important predictors of outcome in testicular torsion. There was a study that reported no testicle with a history longer than 12 h could be salvaged [19]. Another study by Bandarkar et al. reported testicular salvage up to 3 weeks for an incomplete testicular torsion [7]. In our study, testicular salvage was possible even beyond 72 h and surgical notes confirmed complete torsion. They may have had intermittent torsion or torsion detorsion syndrome but with complete torsion at the time of surgery.

Our study points out that in patients who presented within 24 h of onset, the salvage rate is as high as 75%, while the orchidectomy rate is about 25%. It also demonstrates that the orchidectomy rate increased to 95% in those who presented beyond 72 h (Table 4), while the orchidopexy rate decreased to 3.6%. Orchidopexy was performed in those who demonstrated reperfusion after detorsion in theater where we usually base our assessment of viability on color changes from dusky to pinky after detorsion and wrapping of the testis in warm soaked surgical swab. Five of the patients presented beyond 72 h of onset in the study (3.6%) had orchidopexy with time frame ranging from 73 to 816 h (about 5 weeks). A clinical study on 16 cases of testicular torsion by Sato et al. reported similar findings in 2 of 16 patients operated after 72 h and no testicular atrophy was noted one year after surgery [20]. Nonetheless, the earlier patients present to hospital, the higher the testicular salvage surgery rate is.

Most importantly, we found that the median duration from onset of symptoms to surgery in the orchidopexy group was shorter compared to the orchidectomy group at 13 (9–26) h and 144 (40264) h, respectively. The median duration from admission to surgery was also shorter in the orchidopexy group compared to the orchidectomy group at 3 (2–5) h and 24 (5–72) h, respectively. The authors of a study in England demonstrating that most delay occurs outside hospital in managing testicular torsion, reported that patients were taken to the operating room within one hour and that the median time from onset of symptoms to surgery was 5.5 h in patients who had orchidopexy versus 42 h in patients who had orchidectomy [17]. Another study conducted in Croatia noted nearly similar findings 6 h in the orchidopexy group versus 46 h in the orchidectomy group [21]. Our study had the longest median duration compared to the other studies in both groups. Further studies with emphasis on the level of awareness; distance and transport issues; logistic issues during referral or transfer may be necessary to elucidate this findings.

Korkes et al. as well as Pogorelic et al. published studies supporting significant increase in incidence during colder months [10, 21]. We also found that winter was the season with the highest number of referrals in both age groups (26.7% in those < 16 years and 32.77% in those > 16 years) (Table 3); however, it was not statistically significant (p = 0.480). Testicular torsion was suggested to be more common during winter as the cremasteric reflex tends to occur more frequently in winter due to colder temperatures [22].

In our study, manual detorsion applied in 32 patients among those presented within 48 h of onset of symptoms was associated with a salvage surgery or testicular fixation surgery in 28 out of 32 (87.5%) performed manual detorsion. This procedure which helps reduce the testicular ischemic time needs to always be followed by orchidopexy [23]. In our institution, we always strive to reduce to a minimum possible the time from admission to emergency surgery for every suspected testicular torsion presented within 72 h. The median (IQR) time from admission to surgery in those presented within 72 h of onset being 3 h, most of the time, due to emergency trauma cases (gun shots, stab wounds), hence manual detorsion as a routine part of management of testicular torsion will always find its significance in preventing more ischemic damages to the testis.

Surprisingly, there is no documented study in the literature that looked at the association between age and laterality of testicular torsion. This study is the first to examine such relationship and finds that patients aged ≥ 16 years are 1.5 times likely to present with right-sided testicular torsion compared with those < 16 years of age (OR 1.50, 95% CI 0.95–2.37), though not significant (p = 0.080). Interestingly, the same study shows that for every 1-year increase in age, the odds of presenting with a right-sided testicular torsion increases by 6% (OR 1.06, 95% CI 1.00–1.12, p = 0.047).

There is no study in the literature highlighting the clinical significance of older patients to present mostly with right-sided testicular torsion as noted in this cohort. Further studies might be needed in the future to assess its clinical significance.

Nevertheless, limitations of the study included: reliance on the data as they were collected (timing, patients’ details); the record keeping system in theater and in the filing department is not electronic; hence, some files could not be retrieved due to names misspelled, hospital number not accurately entered in the registry, illegible handwriting. Follow-up notes to assess viability or atrophy particularly for orchidopexy beyond 72 h were not available as outpatients use an outpatient file that they keep.

As a retrospective study, the reason of preadmission delay for each individual patient could not be established; hence, we assume that the delay might have been caused by one of the following: lack of awareness; misdiagnosis; distance and transport issues; logistic issues when arranging transfer.

5 Conclusion

We report that delayed management of testicular torsion is relative to pre-admission delay for testicular torsion and that these delays significantly impact on the testicular loss and salvage rates. There is a significant association between the pre-surgery duration of symptoms and the type of surgery. Testicular salvage is possible beyond 72 h from the onset of symptoms, although the salvage rate reduces from 75% within 24 h to 3.6% beyond 72 h. The testicular salvage rate is higher, the earlier patients present.

In addition, the overall median time from admission to surgery in our urology unit is 6 h and decreases to 3 h for patients who present within 72 h. Furthermore, manual detorsion was found to be an important management tool as close to 88% of manually untwisted testes had salvage surgery.

Interestingly, our study is the first to look at age and laterality of testicular torsion and we report that for every 1-year increase in age, the odds of presenting with a right-sided testicular torsion increases by 6%.
